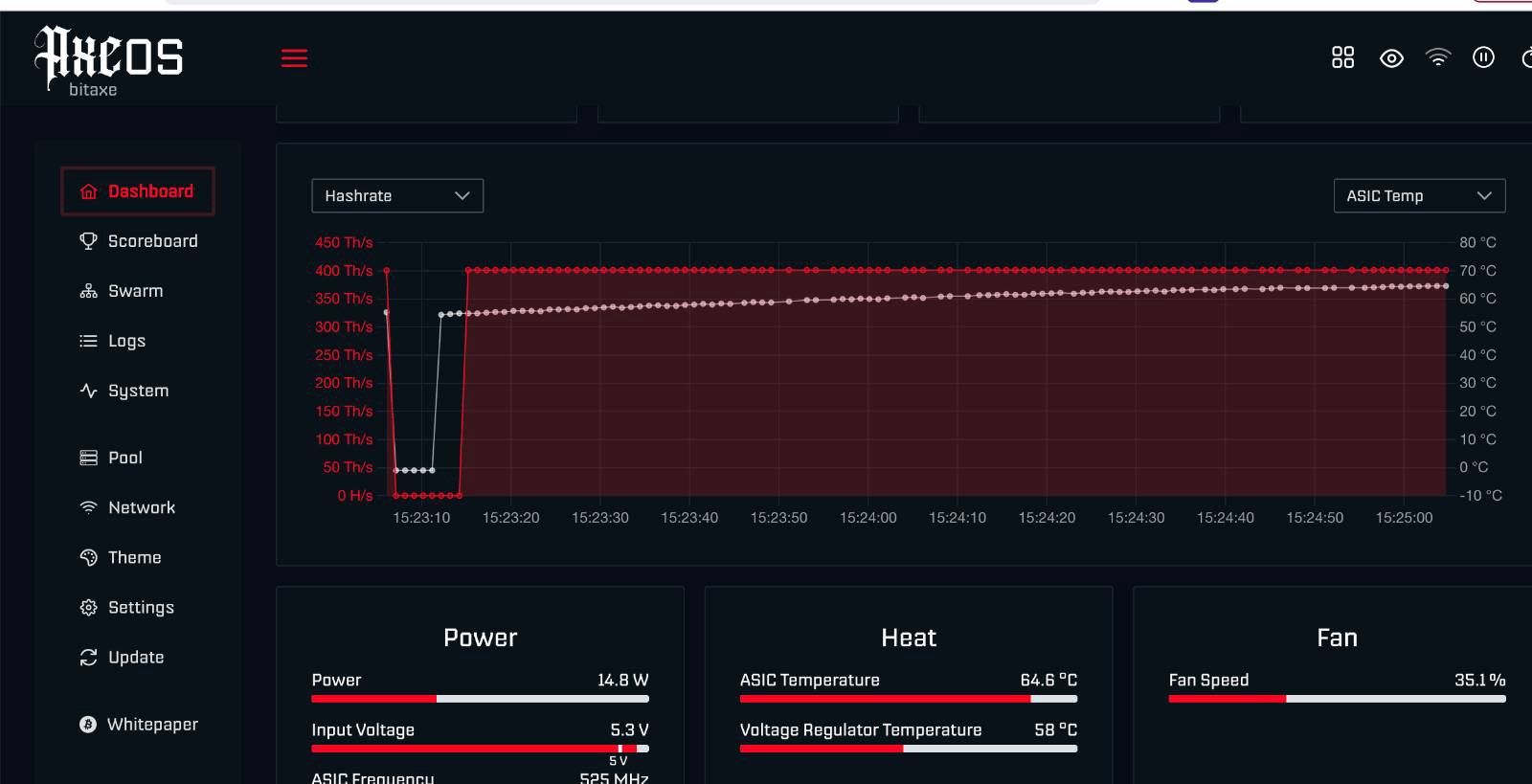

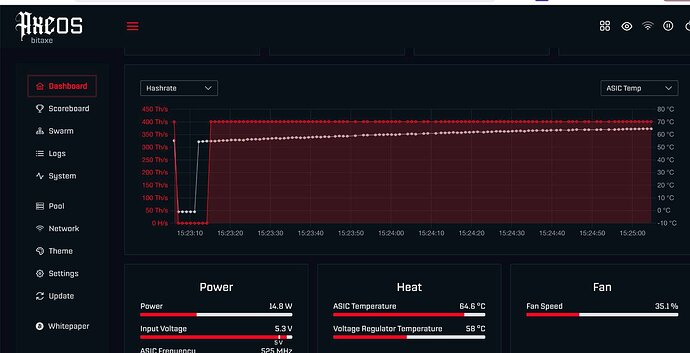

I dunno if this asic is bad or if there is a bug or not , the hashrate of this bitaxe 601 is at 400ths
Me too,and I try many seting cann’t solve this BUG
Turns out it was bad asic for my case , if you can share your log file everyone can review it and find the issue .
Are you sure it’s the core that’s broken?this my logs
e[0;32mI (1051) bitaxe: Welcome to the bitaxe - FOSS || GTFO!e[0m
e[0;32mI (1054) bitaxe: I2C initialized successfullye[0m
e[0;32mI (1058) bitaxe: RST pin initialized to lowe[0m
e[0;32mI (1163) adc: calibration scheme version is Curve Fittinge[0m
e[0;32mI (1163) adc: Calibration Successe[0m
e[0;32mI (1194) nvs_config: Used entries: 276e[0m
e[0;32mI (1194) nvs_config: Free entries: 480e[0m
e[0;32mI (1194) nvs_config: Available entries: 354e[0m
e[0;32mI (1197) nvs_config: Total entries: 756e[0m
e[0;32mI (1217) device_config: Device Model: Gammae[0m
e[0;32mI (1217) device_config: Board Version: 601e[0m
e[0;32mI (1217) device_config: ASIC: 1x BM1370 (128 cores)e[0m
e[0;32mI (1221) system: Initial overheat_mode value: 0e[0m
e[0;32mI (1229) pp: pp rom version: e7ae62fe[0m
e[0;32mI (1231) net80211: net80211 rom version: e7ae62fe[0m
I (1237) wifi:wifi driver task: 3fcbe7ec, prio:23, stack:6656, core=0
I (1251) wifi:wifi firmware version: 4df78f2
I (1252) wifi:wifi certification version: v7.0
I (1252) wifi:config NVS flash: enabled
I (1253) wifi:config nano formatting: disabled
I (1258) wifi:Init data frame dynamic rx buffer num: 32
I (1263) wifi:Init static rx mgmt buffer num: 5
I (1267) wifi:Init management short buffer num: 32
I (1272) wifi:Init static tx buffer num: 16
I (1276) wifi:Init tx cache buffer num: 32
I (1279) wifi:Init static tx FG buffer num: 2
I (1283) wifi:Init static rx buffer size: 1600
I (1287) wifi:Init static rx buffer num: 16
I (1291) wifi:Init dynamic rx buffer num: 32
e[0;32mI (1296) wifi_init: rx ba win: 16e[0m
e[0;32mI (1299) wifi_init: accept mbox: 6e[0m
e[0;32mI (1303) wifi_init: tcpip mbox: 32e[0m
e[0;32mI (1307) wifi_init: udp mbox: 6e[0m
e[0;32mI (1311) wifi_init: tcp mbox: 6e[0m
e[0;32mI (1315) wifi_init: tcp tx win: 5760e[0m
e[0;32mI (1319) wifi_init: tcp rx win: 5760e[0m
e[0;32mI (1324) wifi_init: tcp mss: 1440e[0m
e[0;32mI (1327) wifi_init: WiFi/LWIP prefer SPIRAMe[0m
e[0;32mI (1332) wifi_init: WiFi IRAM OP enablede[0m
e[0;32mI (1337) wifi_init: WiFi RX IRAM OP enablede[0m
e[0;32mI (1347) connect: ESP_WIFI_MODE_STAe[0m
e[0;32mI (1348) connect: Wi-Fi Password provided, using WPA2e[0m
e[0;32mI (1352) connect: wifi_init_sta finished.e[0m
I (1356) wifi:Set ps type: 0, coexist: 0
e[0;32mI (1360) connect: ESP_WIFI setting hostname to: bitaxee[0m
e[0;32mI (1366) phy_init: phy_version 711,97bcf0a2,Aug 25 2025,19:04:10e[0m
I (1409) wifi:mode : sta (a4:cb:8f:e2:5a:70) + softAP (a4:cb:8f:e2:5a:71)
I (1410) wifi:enable tsf
I (1411) wifi:Total power save buffer number: 8
I (1412) wifi:Init max length of beacon: 752/752
I (1416) wifi:Init max length of beacon: 752/752
e[0;32mI (1420) connect: Connecting…e[0m
e[0;32mI (1425) connect: wifi_init_sta finished.e[0m
e[0;32mI (1426) connect: Configuration Access Point enablede[0m
e[0;32mI (1435) esp_netif_lwip: DHCP server started on interface WIFI_AP_DEF with IP: 192.168.4.1e[0m
e[0;32mI (1435) display: SSD1306 (128x32)e[0m
e[0;32mI (1447) display: Install panel IOe[0m
e[0;32mI (1451) display: Install panel drivere[0m
e[0;32mI (1457) display: Initialize LVGLe[0m
e[0;32mI (1461) LVGL: Starting LVGL taske[0m
e[0;32mI (1480) display: Rotation: 0e[0m
e[0;32mI (1581) display: Display init success!e[0m
e[0;32mI (1581) input: Install button drivere[0m
e[0;32mI (1659) system: Existing overheat_mode value: 0e[0m
e[0;32mI (1788) filesystem: Partition size: total: 2884241, used: 756012e[0m
e[0;32mI (1789) TPS546: Initializing the core voltage regulatore[0m
e[0;32mI (1805) TPS546: Device ID: 54 49 54 6d 24 41e[0m
e[0;32mI (1805) TPS546: Power config-OPERATION: 00e[0m
e[0;32mI (1806) TPS546: Power config-ON_OFF_CONFIG: 1Fe[0m
e[0;32mI (1810) TPS546: Reading MFR infoe[0m
e[0;32mI (1814) TPS546: MFR_ID: 00 00 00e[0m
e[0;32mI (1817) TPS546: MFR_MODEL: 00 00 00e[0m
e[0;32mI (1822) TPS546: MFR_REVISION: 00 00 00e[0m
e[0;32mI (1826) TPS546: Writing new config valuese[0m
e[0;32mI (1833) TPS546: VOUT_MODE: 97e[0m
e[0;32mI (1835) TPS546: —Writing new config values to TPS546—e[0m
e[0;32mI (1841) TPS546: Setting ON_OFF_CONFIG: 1Be[0m
e[0;32mI (1846) TPS546: Setting STACK_CONFIG: 0000e[0m
e[0;32mI (1851) TPS546: Setting SYNC_CONFIG: 10e[0m
e[0;32mI (1855) TPS546: Setting PHASE: 00e[0m
e[0;32mI (1859) TPS546: Setting FREQUENCY: 650MHze[0m
e[0;32mI (1864) TPS546: Setting VIN_ON: 4.80Ve[0m
e[0;32mI (1869) TPS546: Setting VIN_OFF: 4.50Ve[0m
e[0;32mI (1873) TPS546: Setting VIN_OV_FAULT_LIMIT: 6.50Ve[0m
e[0;32mI (1879) TPS546: Setting VIN_OV_FAULT_RESPONSE: B7e[0m
e[0;32mI (1884) TPS546: Setting VOUT SCALE: 0.25e[0m
e[0;32mI (1889) TPS546: Setting VOUT_COMMAND: 1.20Ve[0m
e[0;32mI (1894) TPS546: Setting VOUT_MAX: 2.00Ve[0m
e[0;32mI (1899) TPS546: Setting VOUT_MIN: 1.00Ve[0m
e[0;32mI (1903) TPS546: Setting VOUT_OV_FAULT_LIMIT: 1.25e[0m
e[0;32mI (1909) TPS546: Setting VOUT_OV_WARN_LIMIT: 1.16e[0m
e[0;32mI (1914) TPS546: Setting VOUT_MARGIN_HIGH: 1.10e[0m
e[0;32mI (1919) TPS546: Setting VOUT_MARGIN_LOW: 0.90e[0m
e[0;32mI (1925) TPS546: Setting VOUT_UV_WARN_LIMIT: 0.90e[0m
e[0;32mI (1930) TPS546: Setting VOUT_UV_FAULT_LIMIT: 0.75e[0m
e[0;32mI (1936) TPS546: ----- IOUTe[0m
e[0;32mI (1938) TPS546: Setting IOUT_OC_WARN_LIMIT: 25.00Ae[0m
e[0;32mI (1944) TPS546: Setting IOUT_OC_FAULT_LIMIT: 30.00Ae[0m
e[0;32mI (1950) TPS546: Setting IOUT_OC_FAULT_RESPONSE: c0e[0m
e[0;32mI (1955) TPS546: ----- TEMPERATUREe[0m
e[0;32mI (1959) TPS546: Setting OT_WARN_LIMIT: 105Ce[0m
e[0;32mI (1964) TPS546: Setting OT_FAULT_LIMIT: 145Ce[0m
e[0;32mI (1969) TPS546: Setting OT_FAULT_RESPONSE: ffe[0m
e[0;32mI (1974) TPS546: ----- TIMINGe[0m
e[0;32mI (1978) TPS546: Setting TON_DELAY: 0mse[0m
e[0;32mI (1982) TPS546: Setting TON_RISE: 3mse[0m
e[0;32mI (1987) TPS546: Setting TON_MAX_FAULT_LIMIT: 0mse[0m
e[0;32mI (1992) TPS546: Setting TON_MAX_FAULT_RESPONSE: 3be[0m
e[0;32mI (1998) TPS546: Setting TOFF_DELAY: 0mse[0m
e[0;32mI (2002) TPS546: Setting TOFF_FALL: 0mse[0m
e[0;32mI (2007) TPS546: Setting PIN_DETECT_OVERRIDEe[0m
e[0;32mI (2012) TPS546: -----------VOLTAGE---------------------e[0m
e[0;32mI (2018) TPS546: read VIN_ON: 4.80Ve[0m
e[0;32mI (2022) TPS546: read VIN_OFF: 4.50Ve[0m
e[0;32mI (2026) TPS546: read VIN_OV_FAULT_LIMIT: 6.50Ve[0m
e[0;32mI (2032) TPS546: read VIN_UV_WARN_LIMIT: 2.50Ve[0m
e[0;32mI (2037) TPS546: read VIN_OV_FAULT_RESPONSE: B7e[0m
e[0;32mI (2042) TPS546: read VOUT_MAX: 2.00Ve[0m
e[0;32mI (2047) TPS546: read VOUT_OV_FAULT_LIMIT: 1.50Ve[0m
e[0;32mI (2052) TPS546: read VOUT_OV_WARN_LIMIT: 1.39Ve[0m
e[0;32mI (2057) TPS546: read VOUT_MARGIN_HIGH: 1.32Ve[0m
e[0;32mI (2062) TPS546: read VOUT_COMMAND: 1.20Ve[0m
e[0;32mI (2067) TPS546: read VOUT_MARGIN_LOW: 1.08Ve[0m
e[0;32mI (2072) TPS546: read VOUT_UV_WARN_LIMIT: 1.08Ve[0m
e[0;32mI (2077) TPS546: read VOUT_UV_FAULT_LIMIT: 0.90Ve[0m
e[0;32mI (2082) TPS546: read VOUT_MIN: 1.00 Ve[0m
e[0;32mI (2086) TPS546: read STATUS_WORD: 0840e[0m
e[0;32mI (2091) TPS546: -----------VOLTAGE/CURRENT---------------------e[0m
e[0;32mI (2098) TPS546: read READ_VIN: 5.21Ve[0m
e[0;32mI (2102) TPS546: read READ_IOUT: -0.19Ae[0m
e[0;32mI (2106) TPS546: read READ_VOUT: 0.02Ve[0m
e[0;32mI (2110) TPS546: -----------TIMING---------------------e[0m
e[0;32mI (2117) TPS546: read TON_DELAY: 0mse[0m
e[0;32mI (2121) TPS546: read TON_RISE: 3mse[0m
e[0;32mI (2125) TPS546: read TON_MAX_FAULT_LIMIT: 0mse[0m
e[0;32mI (2130) TPS546: read TON_MAX_FAULT_RESPONSE: 3be[0m
e[0;32mI (2135) TPS546: read TOFF_DELAY: 0mse[0m
e[0;32mI (2140) TPS546: read TOFF_FALL: 0mse[0m
e[0;32mI (2144) TPS546: ---------CONFIG--------------------e[0m
e[0;32mI (2150) TPS546: read PHASE: 00e[0m
e[0;32mI (2170) TPS546: read STACK_CONFIG: 0000e[0m
e[0;32mI (2171) TPS546: read SYNC_CONFIG: 10e[0m
e[0;32mI (2171) TPS546: read INTERLEAVE: 0020e[0m
e[0;32mI (2173) TPS546: read CAPABILITY: d0e[0m
e[0;32mI (2177) TPS546: ---------OPERATION------------------e[0m
e[0;32mI (2183) TPS546: read OPERATION: 00e[0m
e[0;32mI (2187) TPS546: read ON_OFF_CONFIG: 1be[0m
e[0;32mI (2203) TPS546: read COMPENSATION CONFIGe[0m
e[0;32mI (2204) TPS546: 13 11 08 19 04e[0m
e[0;32mI (2204) TPS546: Clearing faultse[0m
e[0;32mI (2217) TPS546: read STATUS_WORD: 0840e[0m
e[0;32mI (2217) EMC2101: Initializing EMC2101 (Temperature offset: 0° C)e[0m
e[0;32mI (2218) thermal: EMC2101 configuration: Ideality Factor: 24, Beta Compensation: 00e[0m
e[0;32mI (2233) power_management: Startinge[0m
e[0;32mI (2234) power_management: ASIC Frequency: 525 MHz, Expected hashrate: 1.07GH/se[0m
e[0;32mI (2238) fan_controller: Startinge[0m
e[0;32mI (2239) http_server: Starting HTTP Servere[0m
e[0;32mI (2242) fan_controller: Set to Manual mode, fan speed: 100.0%e[0m
e[0;32mI (2252) dns_server: Socket createde[0m
e[0;32mI (2251) websocket_log: websocket_log_task startinge[0m
e[0;32mI (2258) dns_server: Socket bound, port 53e[0m
e[0;32mI (2251) websocket_api: websocket_api_task startinge[0m
e[0;32mI (2268) dns_server: Waiting for datae[0m
e[0;32mI (2253) system: Firmware Version: v2.14.2e[0m
e[0;32mI (2282) system: AxeOS Version: v2.14.2e[0m
e[0;32mI (2287) BAP: Initializing BAP systeme[0m
e[0;32mI (2293) BAP: BAP system initialized successfullye[0m
e[0;32mI (2740) power_management: setting new vcore voltage to 1200mVe[0m
e[0;32mI (2740) vcore: Set ASIC voltage = 1.200Ve[0m
e[0;32mI (2741) TPS546: Vout changed to 1.20 Ve[0m
I (4263) wifi:ap channel adjust o:1,1 n:13,2
I (4263) wifi:new:<13,0>, old:<1,1>, ap:<13,2>, sta:<13,0>, prof:1, snd_ch_cfg:0x0
I (4264) wifi:state: init → auth (0xb0)
I (4273) wifi:state: auth → assoc (0x0)
I (4282) wifi:state: assoc → run (0x10)
I (4287) wifi:idx:0 (ifx:0, ee:b9:70:81:7a:f0), tid:5, ssn:0, winSize:64
e[0;31mE (4378) TPS546: Status: 0x0840e[0m
e[0;31mE (4378) TPS546: The voltage regulator is turned offe[0m
I (4388) wifi:idx:1 (ifx:0, ee:b9:70:81:7a:f0), tid:0, ssn:2, winSize:64
I (4389) wifi:connected with YYGLGG, aid = 29, channel 13, BW20, bssid = ee:b9:70:81:7a:f0
I (4392) wifi:security: WPA2-PSK, phy: bgn, rssi: -44
I (4399) wifi:pm start, type: 0
I (4400) wifi:dp: 1, bi: 102400, li: 3, scale listen interval from 307200 us to 307200 us
I (4408) wifi:set rx beacon pti, rx_bcn_pti: 0, bcn_timeout: 25000, mt_pti: 0, mt_time: 10000
E (4416) wifi:sta is connecting, cannot set config
I (4421) wifi:AP’s beacon interval = 102400 us, DTIM period = 1
e[0;32mI (4428) connect: Acquiring IP…e[0m
e[0;32mI (5945) connect: IPv4 Address: 192.168.1.180e[0m
e[0;32mI (5945) connect: Connected to SSID: YYGLGGe[0m
I (5946) wifi:mode : sta (a4:cb:8f:e2:5a:70)
e[0;32mI (5949) esp_netif_handlers: sta ip: 192.168.1.180, mask: 255.255.255.0, gw: 192.168.1.1e[0m
e[0;32mI (5957) connect: Configuration Access Point disablede[0m
e[0;32mI (6030) asic_init: Starting ASIC initialization (cold boot mode)e[0m
e[0;32mI (6230) asic_init: Performing full UART initializatione[0m
e[0;32mI (6230) serial: Initializing seriale[0m
e[0;32mI (6231) asic_init: Detecting ASIC chips…e[0m
e[0;32mI (6234) asic: Initializing 1x BM1370e[0m
e[0;32mI (6244) common: Chip 0 detected: CORE_NUM: 0x00 ADDR: 0x00e[0m
e[0;32mI (7228) connect: IPv6 Address: FE80::A6CB:8FFF:FEE2:5A70e[0m
e[0;32mI (7244) frequency_transition: Ramping up frequency from 50 MHz to 525 MHze[0m
e[0;32mI (7246) pll: Frequency: 56.25 MHz (fb_divider: 189, refdiv: 2, postdiv1: 7, postdiv2: 6)e[0m
e[0;32mI (7252) bm1370: Setting Frequency to 56.25 MHz (56.25)e[0m
e[0;32mI (7357) pll: Frequency: 62.5 MHz (fb_divider: 175, refdiv: 2, postdiv1: 7, postdiv2: 5)e[0m
e[0;32mI (7358) bm1370: Setting Frequency to 62.5 MHz (62.5)e[0m
e[0;32mI (7461) pll: Frequency: 68.75 MHz (fb_divider: 165, refdiv: 2, postdiv1: 6, postdiv2: 5)e[0m
e[0;32mI (7462) bm1370: Setting Frequency to 68.75 MHz (68.75)e[0m
e[0;32mI (7565) pll: Frequency: 75 MHz (fb_divider: 168, refdiv: 2, postdiv1: 7, postdiv2: 4)e[0m
e[0;32mI (7566) bm1370: Setting Frequency to 75 MHz (75)e[0m
e[0;32mI (7668) pll: Frequency: 81.25 MHz (fb_divider: 182, refdiv: 2, postdiv1: 7, postdiv2: 4)e[0m
e[0;32mI (7678) bm1370: Setting Frequency to 81.25 MHz (81.25)e[0m
e[0;32mI (7729) websocket: Added WebSocket api client, fd: 44, slot: 0e[0m
e[0;32mI (7779) pll: Frequency: 87.5 MHz (fb_divider: 168, refdiv: 2, postdiv1: 6, postdiv2: 4)e[0m
e[0;32mI (7780) bm1370: Setting Frequency to 87.5 MHz (87.5)e[0m
e[0;32mI (7883) pll: Frequency: 93.75 MHz (fb_divider: 180, refdiv: 2, postdiv1: 6, postdiv2: 4)e[0m
e[0;32mI (7884) bm1370: Setting Frequency to 93.75 MHz (93.75)e[0m
e[0;32mI (7988) pll: Frequency: 100 MHz (fb_divider: 160, refdiv: 2, postdiv1: 5, postdiv2: 4)e[0m
e[0;32mI (7989) bm1370: Setting Frequency to 100 MHz (100)e[0m
e[0;32mI (8093) pll: Frequency: 106.25 MHz (fb_divider: 170, refdiv: 2, postdiv1: 5, postdiv2: 4)e[0m
e[0;32mI (8094) bm1370: Setting Frequency to 106.25 MHz (106.25)e[0m
e[0;32mI (8197) pll: Frequency: 112.5 MHz (fb_divider: 162, refdiv: 2, postdiv1: 6, postdiv2: 3)e[0m
e[0;32mI (8198) bm1370: Setting Frequency to 112.5 MHz (112.5)e[0m
e[0;32mI (8301) pll: Frequency: 118.75 MHz (fb_divider: 171, refdiv: 2, postdiv1: 6, postdiv2: 3)e[0m
e[0;32mI (8302) bm1370: Setting Frequency to 118.75 MHz (118.75)e[0m
e[0;32mI (8405) pll: Frequency: 125 MHz (fb_divider: 180, refdiv: 2, postdiv1: 6, postdiv2: 3)e[0m
e[0;32mI (8406) bm1370: Setting Frequency to 125 MHz (125)e[0m
e[0;32mI (8508) pll: Frequency: 131.25 MHz (fb_divider: 189, refdiv: 2, postdiv1: 6, postdiv2: 3)e[0m
e[0;32mI (8509) bm1370: Setting Frequency to 131.25 MHz (131.25)e[0m
e[0;32mI (8612) pll: Frequency: 137.5 MHz (fb_divider: 165, refdiv: 2, postdiv1: 5, postdiv2: 3)e[0m
e[0;32mI (8613) bm1370: Setting Frequency to 137.5 MHz (137.5)e[0m
e[0;32mI (8716) pll: Frequency: 143.75 MHz (fb_divider: 161, refdiv: 2, postdiv1: 7, postdiv2: 2)e[0m
e[0;32mI (8717) bm1370: Setting Frequency to 143.75 MHz (143.75)e[0m
e[0;32mI (8820) pll: Frequency: 150 MHz (fb_divider: 168, refdiv: 2, postdiv1: 7, postdiv2: 2)e[0m
e[0;32mI (8821) bm1370: Setting Frequency to 150 MHz (150)e[0m
e[0;32mI (8923) pll: Frequency: 156.25 MHz (fb_divider: 175, refdiv: 2, postdiv1: 7, postdiv2: 2)e[0m
e[0;32mI (8924) bm1370: Setting Frequency to 156.25 MHz (156.25)e[0m
e[0;32mI (9027) pll: Frequency: 162.5 MHz (fb_divider: 182, refdiv: 2, postdiv1: 7, postdiv2: 2)e[0m
e[0;32mI (9028) bm1370: Setting Frequency to 162.5 MHz (162.5)e[0m
e[0;32mI (9131) pll: Frequency: 168.75 MHz (fb_divider: 162, refdiv: 2, postdiv1: 6, postdiv2: 2)e[0m
e[0;32mI (9132) bm1370: Setting Frequency to 168.75 MHz (168.75)e[0m
e[0;32mI (9235) pll: Frequency: 175 MHz (fb_divider: 168, refdiv: 2, postdiv1: 6, postdiv2: 2)e[0m
e[0;32mI (9236) bm1370: Setting Frequency to 175 MHz (175)e[0m
e[0;32mI (9341) http_server: File sending completee[0m
e[0;32mI (9341) pll: Frequency: 181.25 MHz (fb_divider: 174, refdiv: 2, postdiv1: 6, postdiv2: 2)e[0m
e[0;32mI (9344) bm1370: Setting Frequency to 181.25 MHz (181.25)e[0m
e[0;32mI (9382) websocket: Removed WebSocket api client, fd: 44, slot: 0e[0m
e[0;32mI (9431) websocket: Added WebSocket api client, fd: 44, slot: 0e[0m
e[0;32mI (9450) pll: Frequency: 187.5 MHz (fb_divider: 180, refdiv: 2, postdiv1: 6, postdiv2: 2)e[0m
e[0;32mI (9451) bm1370: Setting Frequency to 187.5 MHz (187.5)e[0m
e[0;32mI (9554) pll: Frequency: 193.75 MHz (fb_divider: 186, refdiv: 2, postdiv1: 6, postdiv2: 2)e[0m
e[0;32mI (9555) bm1370: Setting Frequency to 193.75 MHz (193.75)e[0m
e[0;32mI (9658) pll: Frequency: 200 MHz (fb_divider: 160, refdiv: 2, postdiv1: 5, postdiv2: 2)e[0m
e[0;32mI (9659) bm1370: Setting Frequency to 200 MHz (200)e[0m
e[0;32mI (9761) pll: Frequency: 206.25 MHz (fb_divider: 165, refdiv: 2, postdiv1: 5, postdiv2: 2)e[0m
e[0;32mI (9762) bm1370: Setting Frequency to 206.25 MHz (206.25)e[0m
e[0;32mI (9865) pll: Frequency: 212.5 MHz (fb_divider: 170, refdiv: 2, postdiv1: 5, postdiv2: 2)e[0m
e[0;32mI (9866) bm1370: Setting Frequency to 212.5 MHz (212.5)e[0m
e[0;32mI (9969) pll: Frequency: 218.75 MHz (fb_divider: 175, refdiv: 2, postdiv1: 5, postdiv2: 2)e[0m
e[0;32mI (9970) bm1370: Setting Frequency to 218.75 MHz (218.75)e[0m
e[0;32mI (10073) pll: Frequency: 225 MHz (fb_divider: 180, refdiv: 2, postdiv1: 5, postdiv2: 2)e[0m
e[0;32mI (10074) bm1370: Setting Frequency to 225 MHz (225)e[0m
e[0;32mI (10177) pll: Frequency: 231.25 MHz (fb_divider: 185, refdiv: 2, postdiv1: 5, postdiv2: 2)e[0m
e[0;32mI (10178) bm1370: Setting Frequency to 231.25 MHz (231.25)e[0m
e[0;32mI (10282) pll: Frequency: 237.5 MHz (fb_divider: 190, refdiv: 2, postdiv1: 5, postdiv2: 2)e[0m
e[0;32mI (10283) bm1370: Setting Frequency to 237.5 MHz (237.5)e[0m
e[0;32mI (10386) pll: Frequency: 243.75 MHz (fb_divider: 195, refdiv: 2, postdiv1: 5, postdiv2: 2)e[0m
e[0;32mI (10387) bm1370: Setting Frequency to 243.75 MHz (243.75)e[0m
e[0;32mI (10490) pll: Frequency: 250 MHz (fb_divider: 160, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (10491) bm1370: Setting Frequency to 250 MHz (250)e[0m
e[0;32mI (10594) pll: Frequency: 256.25 MHz (fb_divider: 164, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (10595) bm1370: Setting Frequency to 256.25 MHz (256.25)e[0m
e[0;32mI (10698) pll: Frequency: 262.5 MHz (fb_divider: 168, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (10699) bm1370: Setting Frequency to 262.5 MHz (262.5)e[0m
e[0;32mI (10802) pll: Frequency: 268.75 MHz (fb_divider: 172, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (10803) bm1370: Setting Frequency to 268.75 MHz (268.75)e[0m
e[0;32mI (10906) pll: Frequency: 275 MHz (fb_divider: 176, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (10907) bm1370: Setting Frequency to 275 MHz (275)e[0m
e[0;32mI (11010) pll: Frequency: 281.25 MHz (fb_divider: 180, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (11011) bm1370: Setting Frequency to 281.25 MHz (281.25)e[0m
e[0;32mI (11114) pll: Frequency: 287.5 MHz (fb_divider: 161, refdiv: 2, postdiv1: 7, postdiv2: 1)e[0m
e[0;32mI (11115) bm1370: Setting Frequency to 287.5 MHz (287.5)e[0m
e[0;32mI (11221) pll: Frequency: 293.75 MHz (fb_divider: 188, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (11224) bm1370: Setting Frequency to 293.75 MHz (293.75)e[0m
e[0;32mI (11327) pll: Frequency: 300 MHz (fb_divider: 168, refdiv: 2, postdiv1: 7, postdiv2: 1)e[0m
e[0;32mI (11328) bm1370: Setting Frequency to 300 MHz (300)e[0m
e[0;32mI (11431) pll: Frequency: 306.25 MHz (fb_divider: 196, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (11432) bm1370: Setting Frequency to 306.25 MHz (306.25)e[0m
e[0;32mI (11536) pll: Frequency: 312.5 MHz (fb_divider: 175, refdiv: 2, postdiv1: 7, postdiv2: 1)e[0m
e[0;32mI (11537) bm1370: Setting Frequency to 312.5 MHz (312.5)e[0m
e[0;32mI (11641) pll: Frequency: 318.75 MHz (fb_divider: 204, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (11642) bm1370: Setting Frequency to 318.75 MHz (318.75)e[0m
e[0;32mI (11745) pll: Frequency: 325 MHz (fb_divider: 182, refdiv: 2, postdiv1: 7, postdiv2: 1)e[0m
e[0;32mI (11746) bm1370: Setting Frequency to 325 MHz (325)e[0m
e[0;32mI (11849) pll: Frequency: 331.25 MHz (fb_divider: 212, refdiv: 2, postdiv1: 4, postdiv2: 2)e[0m
e[0;32mI (11850) bm1370: Setting Frequency to 331.25 MHz (331.25)e[0m
e[0;32mI (11953) pll: Frequency: 337.5 MHz (fb_divider: 162, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (11954) bm1370: Setting Frequency to 337.5 MHz (337.5)e[0m
e[0;32mI (12057) pll: Frequency: 343.75 MHz (fb_divider: 165, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (12058) bm1370: Setting Frequency to 343.75 MHz (343.75)e[0m
e[0;32mI (12161) pll: Frequency: 350 MHz (fb_divider: 168, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (12162) bm1370: Setting Frequency to 350 MHz (350)e[0m
e[0;32mI (12265) pll: Frequency: 356.25 MHz (fb_divider: 171, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (12266) bm1370: Setting Frequency to 356.25 MHz (356.25)e[0m
e[0;32mI (12369) pll: Frequency: 362.5 MHz (fb_divider: 174, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (12370) bm1370: Setting Frequency to 362.5 MHz (362.5)e[0m
e[0;32mI (12474) pll: Frequency: 368.75 MHz (fb_divider: 177, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (12475) bm1370: Setting Frequency to 368.75 MHz (368.75)e[0m
e[0;32mI (12578) pll: Frequency: 375 MHz (fb_divider: 180, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (12579) bm1370: Setting Frequency to 375 MHz (375)e[0m
e[0;32mI (12682) pll: Frequency: 381.25 MHz (fb_divider: 183, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (12683) bm1370: Setting Frequency to 381.25 MHz (381.25)e[0m
e[0;32mI (12786) pll: Frequency: 387.5 MHz (fb_divider: 186, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (12787) bm1370: Setting Frequency to 387.5 MHz (387.5)e[0m
e[0;32mI (12890) pll: Frequency: 393.75 MHz (fb_divider: 189, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (12891) bm1370: Setting Frequency to 393.75 MHz (393.75)e[0m
e[0;32mI (12994) pll: Frequency: 400 MHz (fb_divider: 160, refdiv: 2, postdiv1: 5, postdiv2: 1)e[0m
e[0;32mI (12995) bm1370: Setting Frequency to 400 MHz (400)e[0m
e[0;32mI (13098) pll: Frequency: 406.25 MHz (fb_divider: 195, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (13099) bm1370: Setting Frequency to 406.25 MHz (406.25)e[0m
e[0;32mI (13202) pll: Frequency: 412.5 MHz (fb_divider: 165, refdiv: 2, postdiv1: 5, postdiv2: 1)e[0m
e[0;32mI (13203) bm1370: Setting Frequency to 412.5 MHz (412.5)e[0m
e[0;32mI (13306) pll: Frequency: 418.75 MHz (fb_divider: 201, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (13307) bm1370: Setting Frequency to 418.75 MHz (418.75)e[0m
e[0;32mI (13410) pll: Frequency: 425 MHz (fb_divider: 170, refdiv: 2, postdiv1: 5, postdiv2: 1)e[0m
e[0;32mI (13411) bm1370: Setting Frequency to 425 MHz (425)e[0m
e[0;32mI (13514) pll: Frequency: 431.25 MHz (fb_divider: 207, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (13515) bm1370: Setting Frequency to 431.25 MHz (431.25)e[0m
e[0;32mI (13618) pll: Frequency: 437.5 MHz (fb_divider: 175, refdiv: 2, postdiv1: 5, postdiv2: 1)e[0m
e[0;32mI (13619) bm1370: Setting Frequency to 437.5 MHz (437.5)e[0m
e[0;32mI (13722) pll: Frequency: 443.75 MHz (fb_divider: 213, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (13723) bm1370: Setting Frequency to 443.75 MHz (443.75)e[0m
e[0;32mI (13826) pll: Frequency: 450 MHz (fb_divider: 180, refdiv: 2, postdiv1: 5, postdiv2: 1)e[0m
e[0;32mI (13827) bm1370: Setting Frequency to 450 MHz (450)e[0m
e[0;32mI (13930) pll: Frequency: 456.25 MHz (fb_divider: 219, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (13931) bm1370: Setting Frequency to 456.25 MHz (456.25)e[0m
e[0;32mI (14035) pll: Frequency: 462.5 MHz (fb_divider: 185, refdiv: 2, postdiv1: 5, postdiv2: 1)e[0m
e[0;32mI (14036) bm1370: Setting Frequency to 462.5 MHz (462.5)e[0m
e[0;32mI (14139) pll: Frequency: 468.75 MHz (fb_divider: 225, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (14140) bm1370: Setting Frequency to 468.75 MHz (468.75)e[0m
e[0;32mI (14243) pll: Frequency: 475 MHz (fb_divider: 190, refdiv: 2, postdiv1: 5, postdiv2: 1)e[0m
e[0;32mI (14244) bm1370: Setting Frequency to 475 MHz (475)e[0m
e[0;32mI (14347) pll: Frequency: 481.25 MHz (fb_divider: 231, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (14348) bm1370: Setting Frequency to 481.25 MHz (481.25)e[0m
e[0;32mI (14452) pll: Frequency: 487.5 MHz (fb_divider: 195, refdiv: 2, postdiv1: 5, postdiv2: 1)e[0m
e[0;32mI (14453) bm1370: Setting Frequency to 487.5 MHz (487.5)e[0m
e[0;32mI (14562) pll: Frequency: 493.75 MHz (fb_divider: 237, refdiv: 2, postdiv1: 6, postdiv2: 1)e[0m
e[0;32mI (14563) bm1370: Setting Frequency to 493.75 MHz (493.75)e[0m
e[0;32mI (14667) pll: Frequency: 500 MHz (fb_divider: 160, refdiv: 2, postdiv1: 4, postdiv2: 1)e[0m
e[0;32mI (14668) bm1370: Setting Frequency to 500 MHz (500)e[0m
e[0;32mI (14771) pll: Frequency: 506.25 MHz (fb_divider: 162, refdiv: 2, postdiv1: 4, postdiv2: 1)e[0m
e[0;32mI (14772) bm1370: Setting Frequency to 506.25 MHz (506.25)e[0m
e[0;32mI (14883) pll: Frequency: 512.5 MHz (fb_divider: 164, refdiv: 2, postdiv1: 4, postdiv2: 1)e[0m
e[0;32mI (14885) bm1370: Setting Frequency to 512.5 MHz (512.5)e[0m
e[0;32mI (14991) pll: Frequency: 518.75 MHz (fb_divider: 166, refdiv: 2, postdiv1: 4, postdiv2: 1)e[0m
e[0;32mI (14992) bm1370: Setting Frequency to 518.75 MHz (518.75)e[0m
e[0;32mI (15097) pll: Frequency: 525 MHz (fb_divider: 168, refdiv: 2, postdiv1: 4, postdiv2: 1)e[0m
e[0;32mI (15098) bm1370: Setting Frequency to 525 MHz (525)e[0m
e[0;32mI (15203) frequency_transition: Successfully transitioned to 525 MHze[0m
e[0;32mI (15204) asic_init: Setting max baud rate and clearing bufferse[0m
e[0;32mI (15207) bm1370: Setting max baud of 1000000 e[0m
e[0;32mI (15225) serial: Changing UART baud to 1000000e[0m
e[0;32mI (15235) asic_init: ASIC initialized successfully with 1 chip(s) (cold boot mode)e[0m
e[0;32mI (15238) create_jobs_task: ASIC Job Interval: 500 mse[0m
e[0;32mI (15244) create_jobs_task: ASIC Ready!e[0m
e[0;32mI (15249) statistics_task: Startinge[0m
e[0;32mI (15252) protocol_coordinator: Protocol coordinator started (primary: SV1, fallback: SV1, state: 1)e[0m
e[0;32mI (15253) stratum_v1_task: Opening connection to pool: public-pool.io:3333e[0m
e[0;32mI (15260) main_task: Returned from app_main()e[0m
e[0;32mI (15289) stratum_socket: Resolved public-pool.io:3333 → 38.51.144.232e[0m
e[0;32mI (15289) stratum_v1_task: Connecting to: stratum+tcp://public-pool.io:3333 (38.51.144.232)e[0m
e[0;32mI (15295) stratum_api: TLS disabled, Using TCP transporte[0m
e[0;32mI (15301) stratum_v1_task: Transport initialized, connecting to public-pool.io:3333 (38.51.144.232)e[0m
e[0;32mI (16651) stratum_v1_task: Resetting stratum uide[0m
e[0;32mI (16651) system: Clean Jobs: clearing queuee[0m
e[0;32mI (16652) stratum_api: tx: {“id”:1,“method”:“mining.configure”,“params”:[[“version-rolling”],{“version-rolling.mask”:“ffffffff”}]}e[0m
e[0;32mI (16664) stratum_api: tx: {“id”:2,“method”:“mining.subscribe”,“params”:[“bitaxe/BM1370/v2.14.2”]}e[0m
e[0;32mI (16674) stratum_api: tx: {“id”:3,“method”:“mining.authorize”,“params”:[“bc1qnp980s5fpp8l94p5cvttmtdqy8rvrq74qly2yrfmzkdsntqzlc5qkc4rkq.bitaxe”,“x”]}e[0m
e[0;32mI (16979) stratum_api: rx: {“id”:1,“error”:null,“result”:{“version-rolling”:true,“version-rolling.mask”:“1fffe000”}}e[0m
e[0;32mI (16979) stratum_v1_task: Set version mask: 1fffe000e[0m
e[0;32mI (16988) stratum_api: rx: {“id”:2,“error”:null,“result”:[[[“mining.notify”,“cea75609”]],“cea75609”,8]}e[0m
e[0;32mI (16995) stratum_v1_task: Set extranonce: cea75609, extranonce_2_len: 8e[0m
e[0;32mI (17004) stratum_api: rx: {“id”:3,“error”:null,“result”:true}e[0m
e[0;32mI (17009) stratum_v1_task: setup message acceptede[0m
e[0;32mI (17014) stratum_api: tx: {“id”:4,“method”:“mining.suggest_difficulty”,“params”:[1000]}e[0m
e[0;32mI (17024) stratum_api: rx: {“id”:null,“method”:“mining.set_difficulty”,“params”:[100000]}e[0m
e[0;32mI (17032) stratum_v1_task: Set pool difficulty: 100000.00e[0m
e[0;32mI (17040) stratum_api: rx: {“id”:null,“method”:“mining.notify”,“params”:[“e5ba98”,“4640685c685dc562cb0fc405dbaca0b7c9b91b6c00010c7f0000000000000000”,“02000000010000000000000000000000000000000000000000000000000000000000000000ffffffff1b0348a70e5075626c69632d506f6f6c”,“ffffffff028542d31200000000220020984a77c289084ff2d434c316bdada021c6c183d507c8a20d3b159b09ac02fe280000000000000000266a24aa21a9ed067dad2cba0dd42d710b6b0406985139d0cbead9b2f4c74773e74df53ea7051600000000”,[“5611a88413712b14a53c1c22a909abdb6d0c4ed83ce1c0f214459255a994fb5f”,“88286925c2d34411fb6847d9dec407bb1a5dc3b23e57ce934dbe5e2c0024a970”,“e867ed2fc8e05a0f524e0cdf8029104e486d502eb6e3500c8a5ffb45c7a4594e”,“5d24c8b318a730f60f69ec8cb394b3f39e9cc902d0b2f106d94c40514cc4f0b1”,“135abb85b48711c4785a381a80e76ce9cf1e645edd627c6fb7a9898681a2c999”,“a5eea1b0e428893ec5c8d153aa36a887c9a5ad69a1a7ddcc3cfd5b68254bcd3c”,“1dd5736e261de37237ebab6eb64edac51789dc3d4abfa74b6efc57c8da7699de”,“ad1056a9c2c20210f8abde7887e4cc04d9c4740d0b6a2ba0bae26942b7ff6abf”,“1a19b3dc93033447e81a694bd755031a1bb264e69e2c16dfa70c082c3768badd”,“f60c100b35449b1413531fc186d836a435f946131e2c69b86c04ef7ca2f9a531”,“65694b87361c309d751ce4d76cfa0f1c2935d84f6571207b773246026d802067”,“15bc20c516e597b89fc69b192359a26b1086a8ff55341823cbabe974065284b7”],“20000000”,“17023ad4”,“6a6beefe”,false]}e[0m
e[0;32mI (17154) system: Syncing clocke[0m
e[0;32mI (17158) stratum_v1_task: Block height 960328e[0m
e[0;32mI (17162) stratum_v1_task: Scriptsig: Public-Poole[0m
e[0;32mI (17167) stratum_v1_task: Coinbase outputs: 2, total value: 315835013 satse[0m
e[0;32mI (17175) stratum_v1_task: Output 0: bc1qnp980s5fpp8l94p5cvttmtdqy8rvrq74qly2yrfmzkdsntqzlc5qkc4rkq (315835013 sat) (Your payout address)e[0m
e[0;32mI (17188) stratum_v1_task: Output 1: OP_RETURN: .!..}.,…-q.k…Q9…Gs.M.>…e[0m
e[0;32mI (17249) create_jobs_task: New Work Dequeued e5ba98e[0m
e[0;32mI (17249) create_jobs_task: New pool difficulty 100000.00e[0m
e[0;32mI (17250) create_jobs_task: Set chip version rolls 65535e[0m
e[0;32mI (17356) stratum_api: rx: {“id”:null,“method”:“mining.set_difficulty”,“params”:[1000]}e[0m
e[0;32mI (17357) stratum_v1_task: Set pool difficulty: 1000.00e[0m
e[0;32mI (18722) stratum_api: rx: {“id”:null,“method”:“mining.notify”,“params”:[“e5c67d”,“4640685c685dc562cb0fc405dbaca0b7c9b91b6c00010c7f0000000000000000”,“02000000010000000000000000000000000000000000000000000000000000000000000000ffffffff1b0348a70e5075626c69632d506f6f6c”,“ffffffff02b71cd41200000000220020984a77c289084ff2d434c316bdada021c6c183d507c8a20d3b159b09ac02fe280000000000000000266a24aa21a9ed99d65e1b0d1c014a48601bf58bb9722f42cdd35c8f46287d59758677a9ffcb3700000000”,[“5611a88413712b14a53c1c22a909abdb6d0c4ed83ce1c0f214459255a994fb5f”,“88286925c2d34411fb6847d9dec407bb1a5dc3b23e57ce934dbe5e2c0024a970”,“e867ed2fc8e05a0f524e0cdf8029104e486d502eb6e3500c8a5ffb45c7a4594e”,“5d24c8b318a730f60f69ec8cb394b3f39e9cc902d0b2f106d94c40514cc4f0b1”,“135abb85b48711c4785a381a80e76ce9cf1e645edd627c6fb7a9898681a2c999”,“724dd9d4fba25d73df65f5562fff8d7180f1ee7d7ca3e0a8fc003471ae02c30a”,“8752c9b3d659e43f928fef698c74e97cbe9a5185b9113c9f04678b7ef446791d”,“cae5b33fcbe573aba636835d0f69bfbee62a1b7302541feaded3a53b95c8c8b4”,“012979c0696d5c7740c3368e381c2439358ba9cfa71a640b08cba9f7f28aae2b”,“c2506969995f6898e81878347aecbe8e3242a40e728191a727d8d9ffa8a33bfb”,“3e91f821a9b4ef4dbbd7edb98dbf9b0eb5f535721ad8362130e49c1a72124454”,“49931c04fbd128347c4be77f901d7ccdbfa0773ae5e3814af37e56a8b48011d3”],“20000000”,“17023ad4”,“6a6bef36”,false]}e[0m
e[0;32mI (18828) create_jobs_task: New Work Dequeued e5c67de[0m
e[0;32mI (18829) stratum_v1_task: Coinbase outputs: 2, total value: 315890871 satse[0m
e[0;32mI (18833) create_jobs_task: New pool difficulty 1000.00e[0m
e[0;32mI (18841) stratum_v1_task: Output 0: bc1qnp980s5fpp8l94p5cvttmtdqy8rvrq74qly2yrfmzkdsntqzlc5qkc4rkq (315890871 sat) (Your payout address)e[0m
e[0;32mI (18859) stratum_v1_task: Output 1: OP_RETURN: .!..^…JH`…r/B…F(}Yu.w…7e[0m
e[0;32mI (20116) http_server: File sending completee[0m
e[0;32mI (20136) websocket: Removed WebSocket api client, fd: 44, slot: 0e[0m
e[0;32mI (20215) websocket: Added WebSocket api client, fd: 44, slot: 0e[0m
